RHINO
®
Model:
“ DS” (Double & Single Action)
Caliber:
357 Mag, 40 S&W, 9x21 (9 mm)
Barrel length:
6”

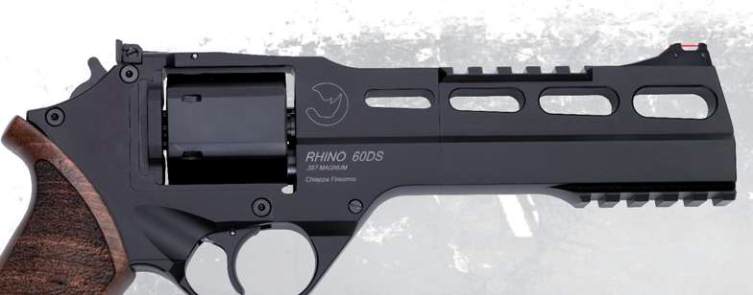

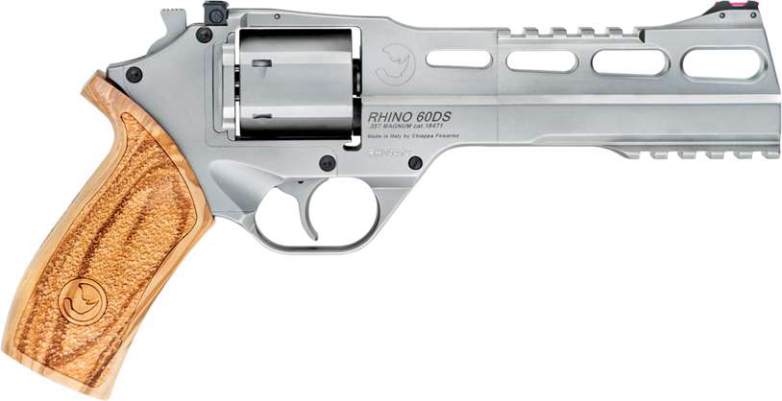

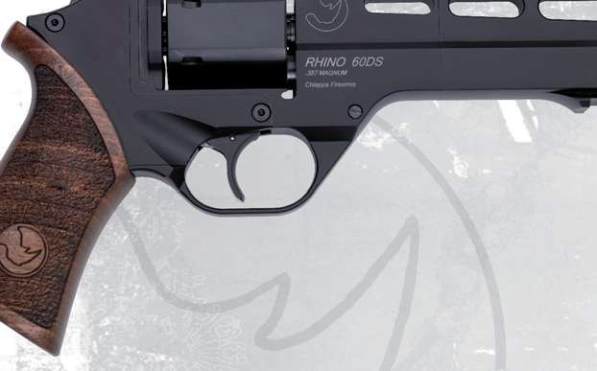

RHINO REVOLVER 60DS
Combination Application
Hammer lever Return lever
Main
Weight
Performance
Advised primer
number
spring
1
Standard
Standard
Standard
Standard
Kg. 4,60 Standard
Commercial
2
Light
Modified
Standard
Standard
Kg. 4,00 Rather light trigger pull, standard trigger return
Commercial, not hard
3
Target shooting
Standard
Modified
Modified
Kg. 3,20 Light trigger pull, quick trigger return
CCI type or lighter
4
Target shooting
Modified
Modified
Modified
Kg. 2,80 Very light trigger pull, quick trigger return
Federal only
5
Target shooting
Modified
Standard
Modified
Kg. 2,50 Extremely light trigger pull, standard trigger return Federal only
We have developed a trigger kit yielding a different performance depending on the assembly of the components. The trigger kit increases the
Rhino’s performance to the greatest degree enhancing both double action pull and single action release. The conversion kit includes three main
components which may be combined with the same elements of the standard version:
Hammer lever:
the standard version entails a heavier trigger pull than the modified version.
Return Lever:
the modified version entails a
quicker trigger return than the standard version.
Main spring:
the standard version entails a heavier trigger pull than the modified version.
The Trigger Assembly Kit is designed for professional use and can be assembled exclusively by the manufacturer when purchasing the
revolver, or by a professional, authorized service center. Please note that due to the lighter pull obtained, some of these kits may not be
suitable for defensive purposes and should not be utilized in a “Duty” revolver.
TRIGGER ASSEMBLY KIT

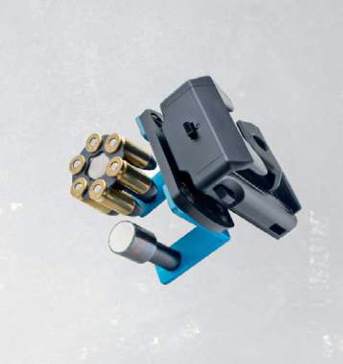

All Rhino models in caliber .40S&W and 9x21 (9 mm) are supplied with a set of 5 moonclips
The unique design of the Rhino which includes the barrel aligned to the bottom chamber, overall
ergonomics and a new design of inner mechanics, yields a revolver that has evolved into the most
natural pointing and comfortable handgun ever produced! The felt recoil and a dramatic reduction of
muzzle flip provides outstanding performance in defense and target shooting.
THE REVOLVER EVOLUTION
